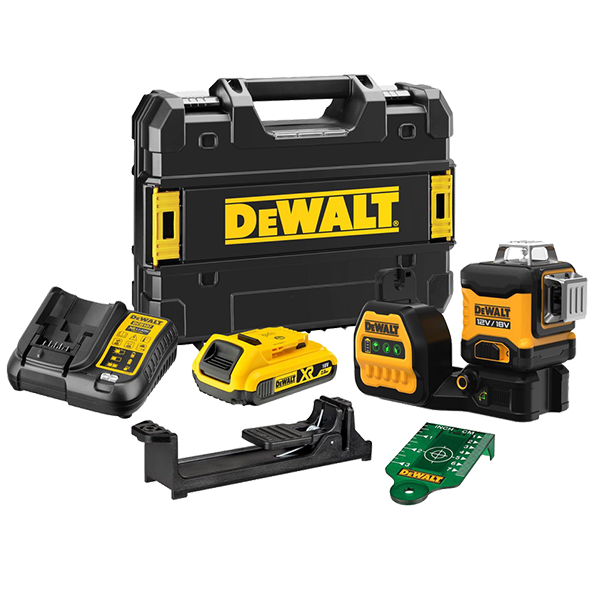

18V 3X360 GREEN BEAM MULTI LINE LASER
DCE089D1G18-XE
| Specifications | |
|---|---|
| Power Imput | 12V & 18V XR® Compatible |
| Line Diagram | 3x360° Multiline (1 X H / 2 X V) |
| Laser Diode | Green, Class 2, 510-530nm |
| Working Range (With Detector) | 30m (50m) |
| Pulse Mode | Yes, Permanent |
| Accuracy Line | ±3mm @ 10m |
| Compensation Range | ±4˚ |
| Leveling Time (Seconds) | ≤5s |
| Ip Rating | 54 |
| Drop Test | 1m |
| Run Time | Up To 10hrs (DCB183) |
| Mounting Thread | 1/4” & 5/8” |

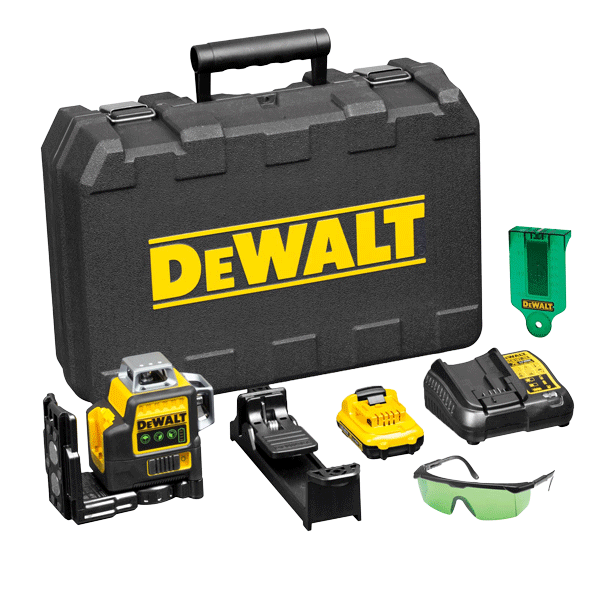

12V 3 X 360° MULTI LINE GREEN LASER
DCE089D1G-XE
- Range : 30M (50M w/detector)
- Accuracy : +/- 3mm at 10m
- 12V XR Li-Ion Battery

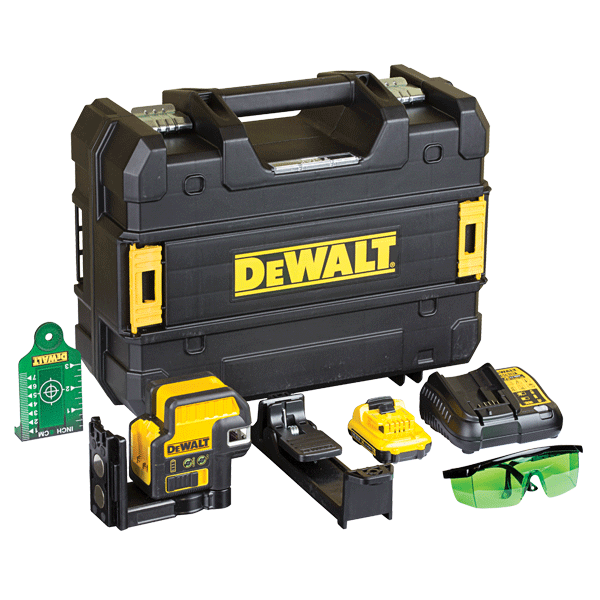

12V 2 SPOT CROSS GREEN
DCE0822D1G-XE
- Range : 15M / 30M (50m w/detector)
- Accuracy : +/- 3mm at 10m
18V XR COMPACT 3 X 360° MULTI LINE GREEN LASER
DCLE34031D1-XE
- Up to 40m working range
- Up to 100m with detector
- 11Hrs Runtime
- +/- 3mm accuracy @ 10m
